KDOT

Project Summary

The tight schedule and above average rainfall made this job for KDOT (Kansas Department of Transportation) a bit challenging. Another interesting part of the equation was that the shell of the office building had to remain, even though the building was totally gutted with a new roof system installed. As a requirement to get funding from the State of KS, a small office portion remained intact so the project could be considered a renovation. Ultimately, we worked on a 6-bay maintenance building with attached office.

Scope of work:

General Contracting on complete project
Demo of existing structure
Site work

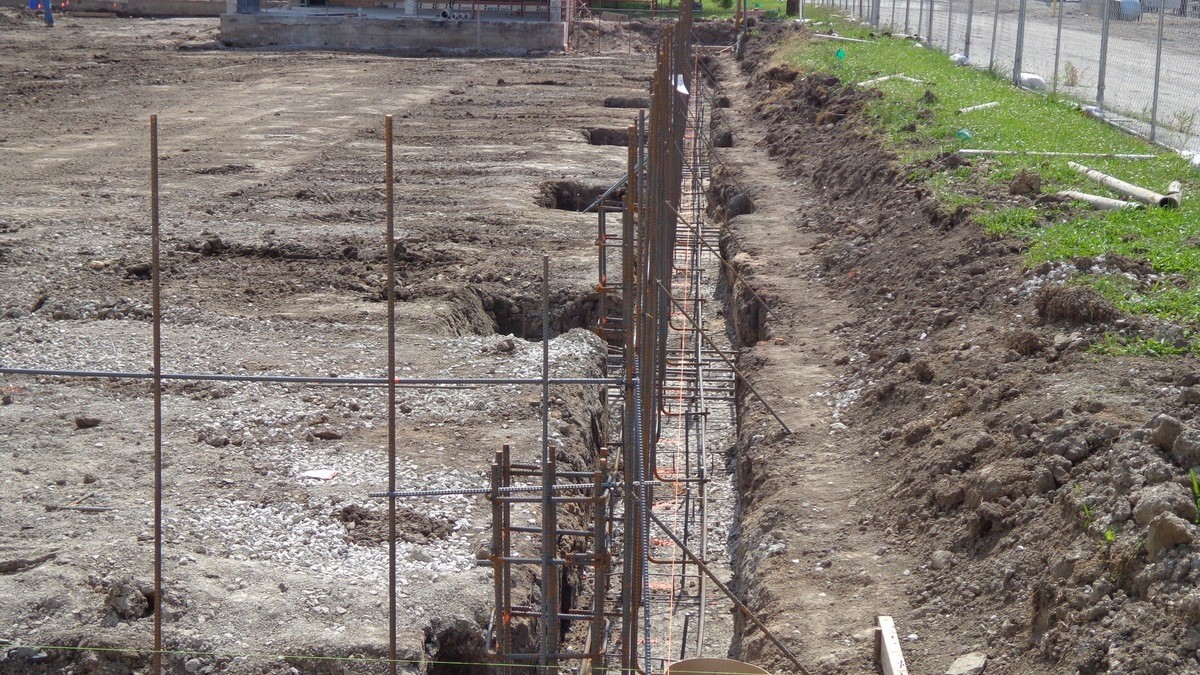

Foundations
Concrete Slab
Electrical
Plumbing
HVAC
Interior framing and finish

Project Specifications and Products Used

Concrete Slab

6’’ slab thickness
10 mil vapor barrier
Pre-sloped trench drain
Concrete placement with laser equipment

Exterior Concrete Apron

24’ x 116’ 8’’
6’’ thick

Pre-engineered Metal Buildings

Vehicle bay building
50’ x 116’ 8’’ (22’ 2’’ at front high eave)
1:12 single slope roof design
Concealed fastener wall panels
Standing seam metal roof

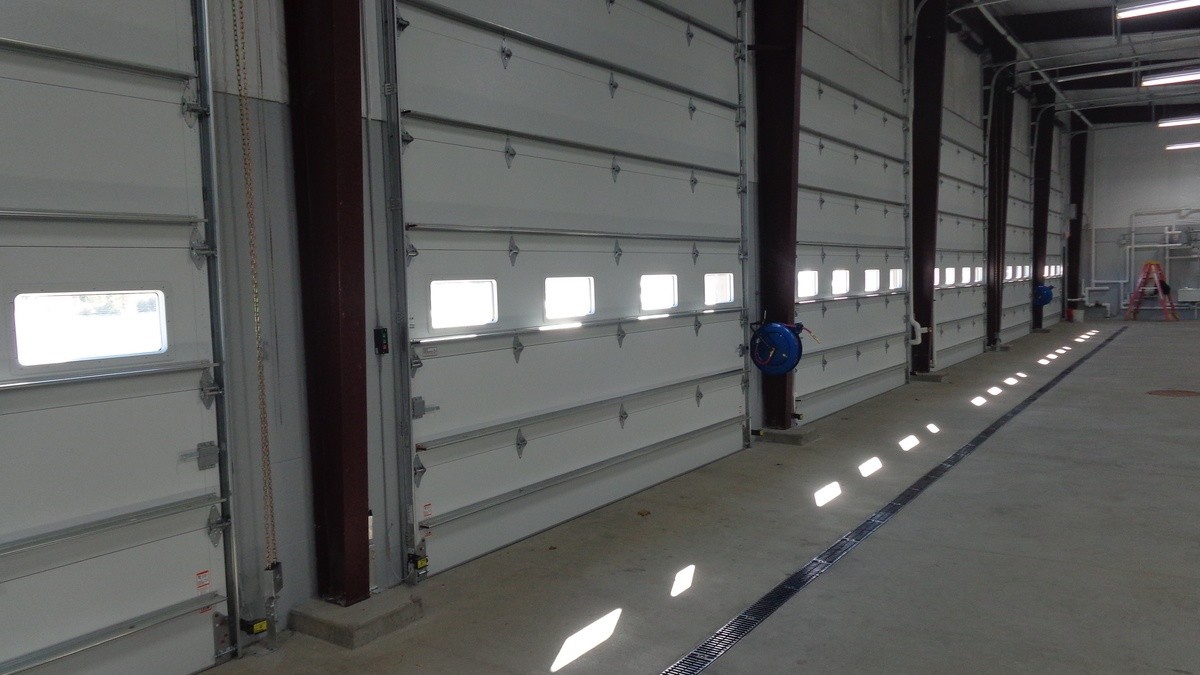

6 - 14’ x 14’ overhead doors

Insulation Package

Simple Saver roof and wall insulation system
8” smooth faced CMU w/Dryblock, foam insulation in cores

Office Building

Existing 28’ x 22’ 4’’ (fully gutted this portion)
Addition 28’ x 17’ 8’’

Interior Finish

Metal stud office framing
Restrooms
Office
Crew room
Storage and mechanical room

Project Location

Kansas City, KS
