Braker Brother’s

Project Summary

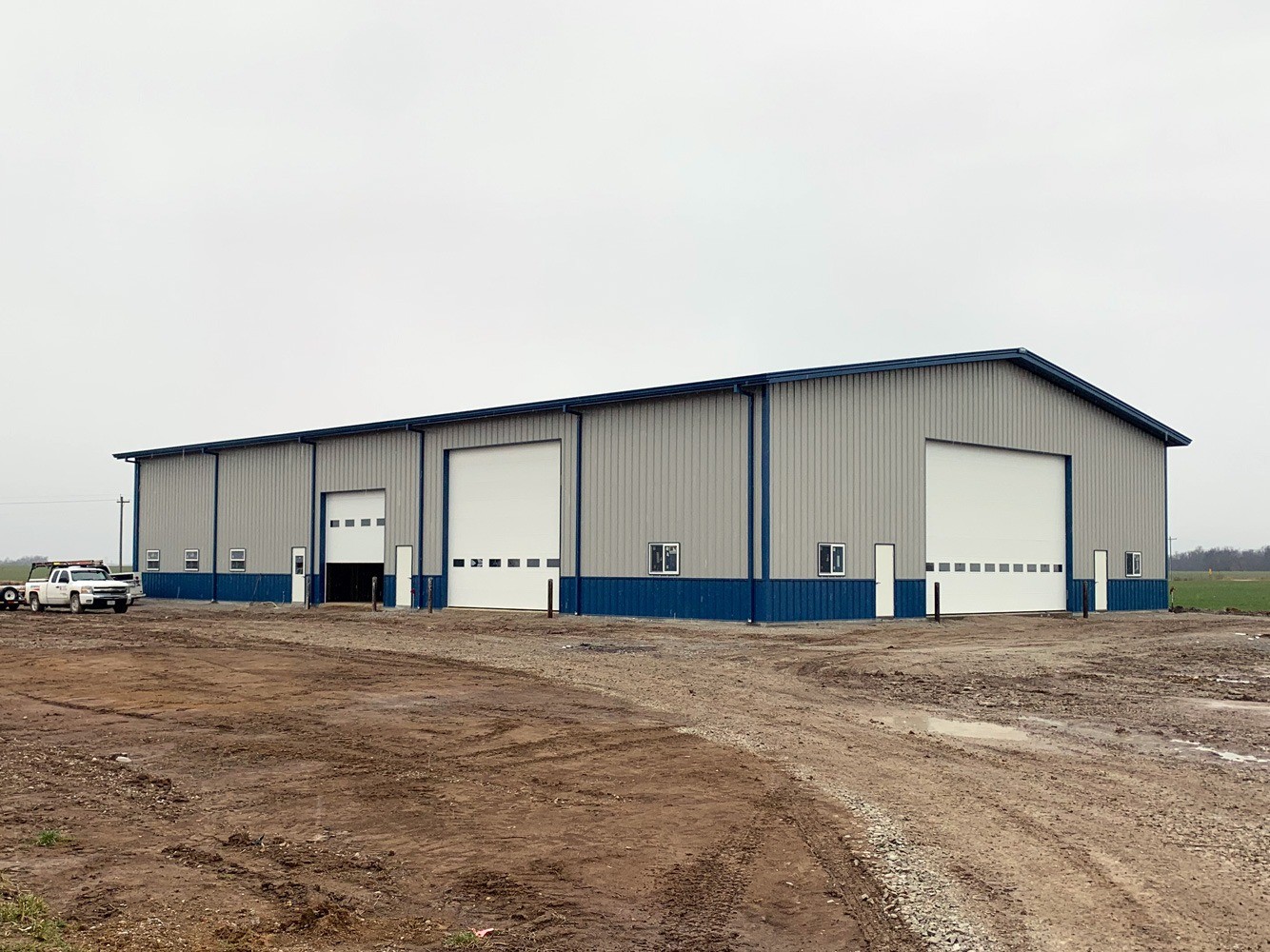

Braker Brother’s is a row crop farmer and also raises beef cattle around the Jasper, Missouri area. They were in need of an insulated shop to service and maintain their farm equipment. After the structure was erected, the customer framed two levels of office space and bathrooms. Our scope of work included the following:

Project drawings (in-house)
Concrete services
PEMB
Overhead doors

Project Specifications and Products Used

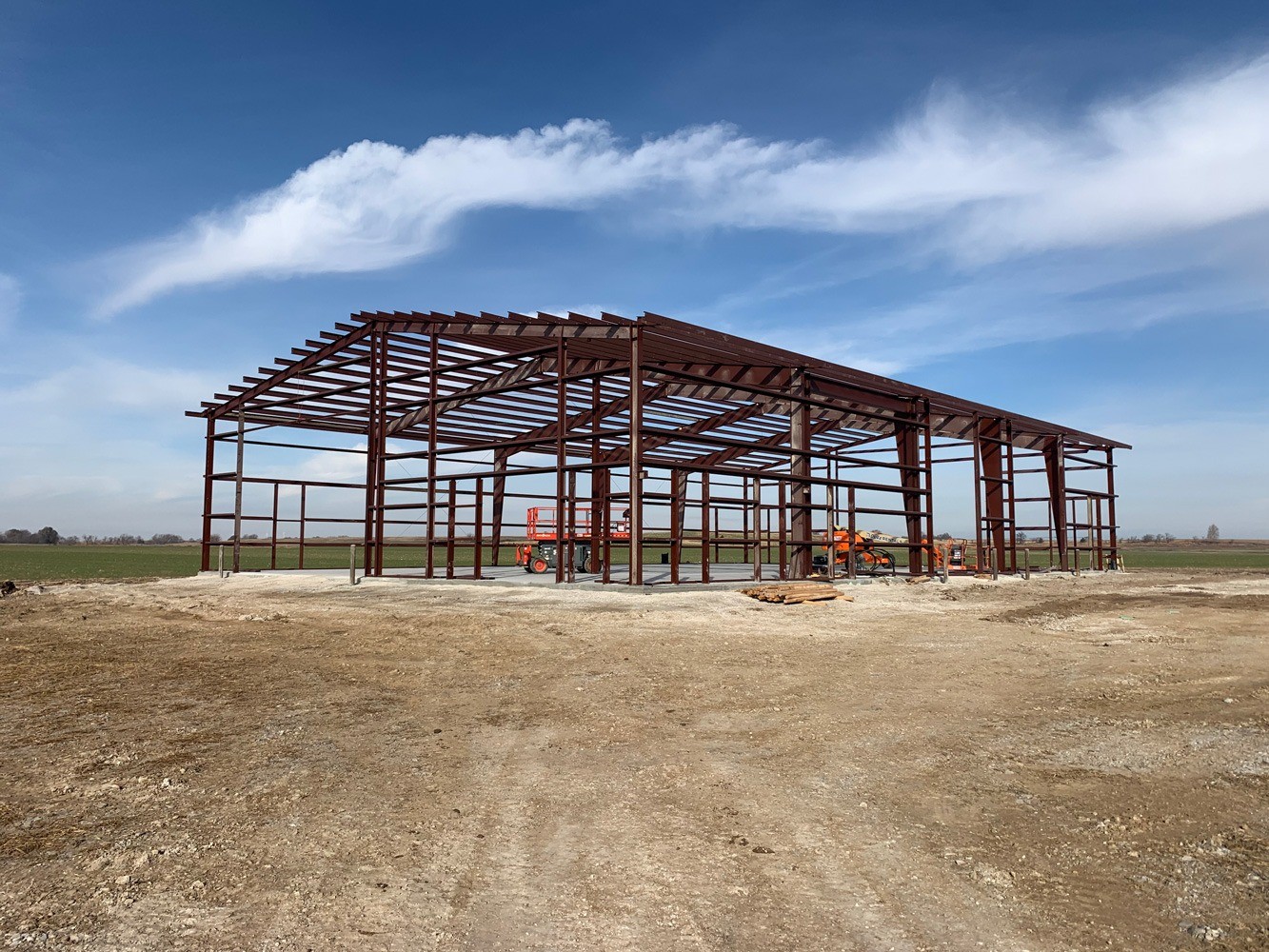

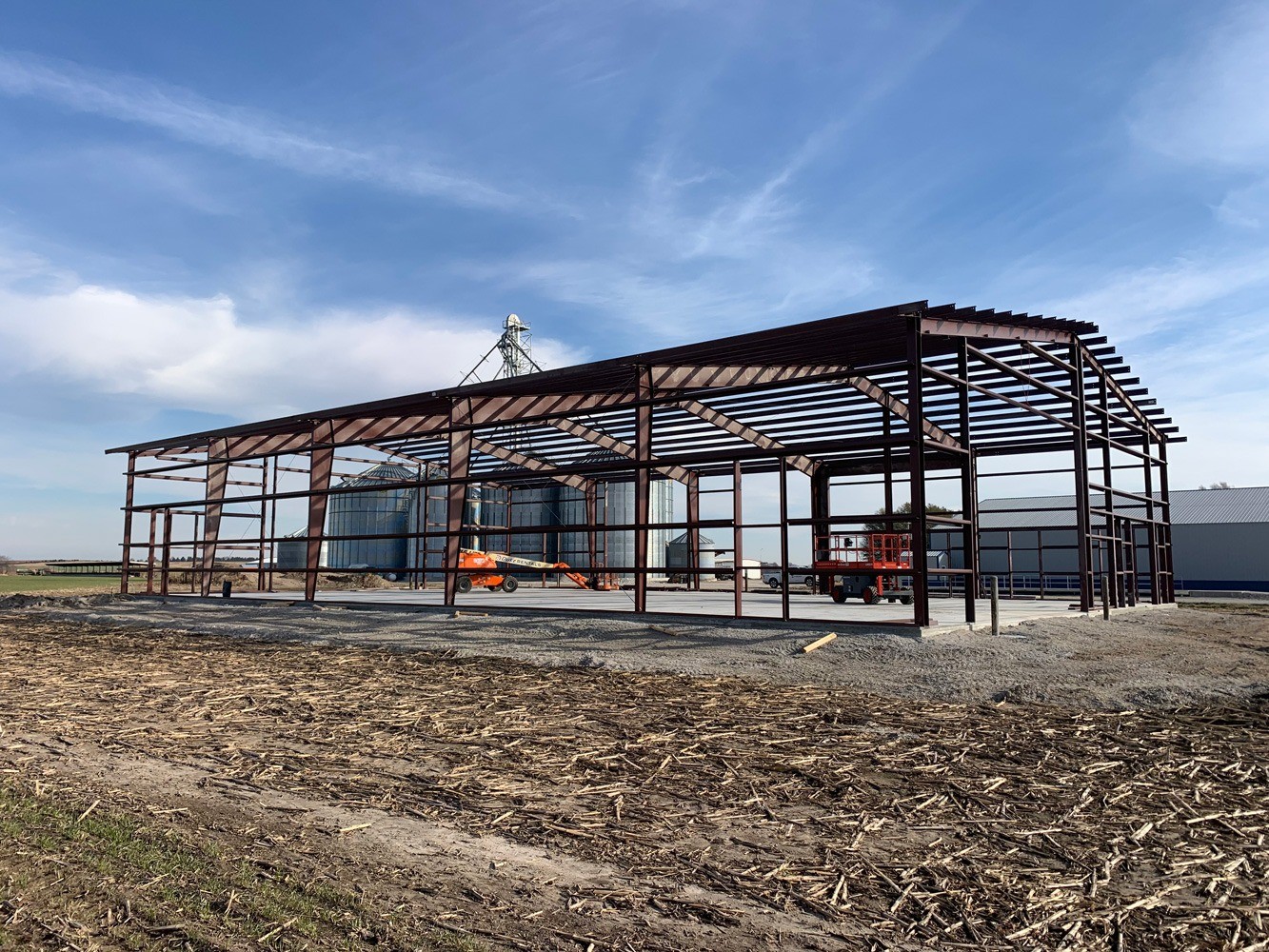

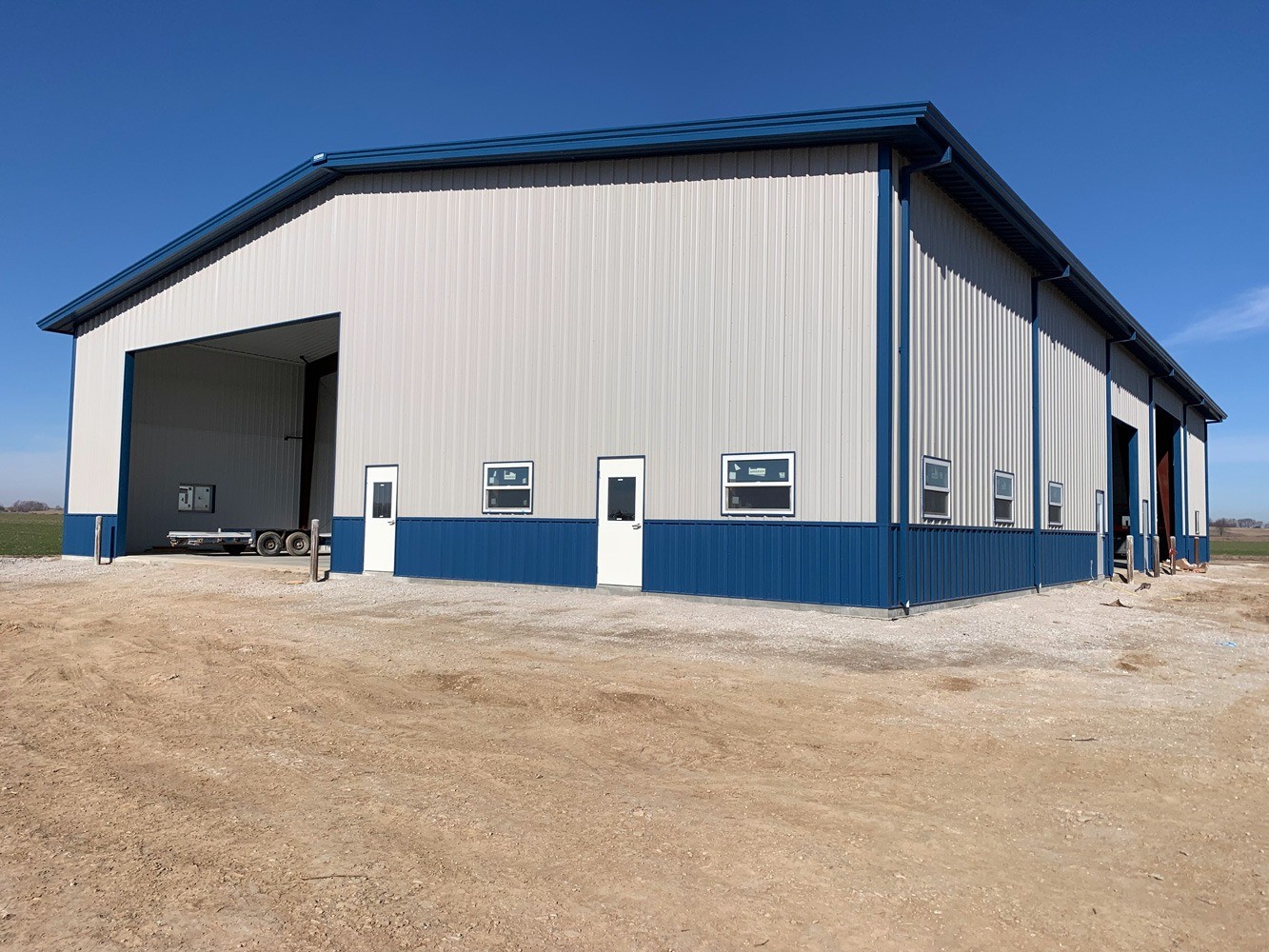

Pre-engineered Metal Building

80’ x 125’ x 22’
2:12 roof slope
2’ eave extension full perimeter
Wainscot
Constant depth column on frame in office area (to help with office finish)
6 - 3070 preassembled walk doors with auto closures (3- half glass and 3 solid panel)
2 - 30’ x 18’ double sided steel, insulated overhead doors
1 - 20’ x 18’ double sided steel, insulated overhead door
1 - 14’ x 14’ double sided steel, insulated overhead door
11 - 4030 Anderson 100 series insulated sliding windows

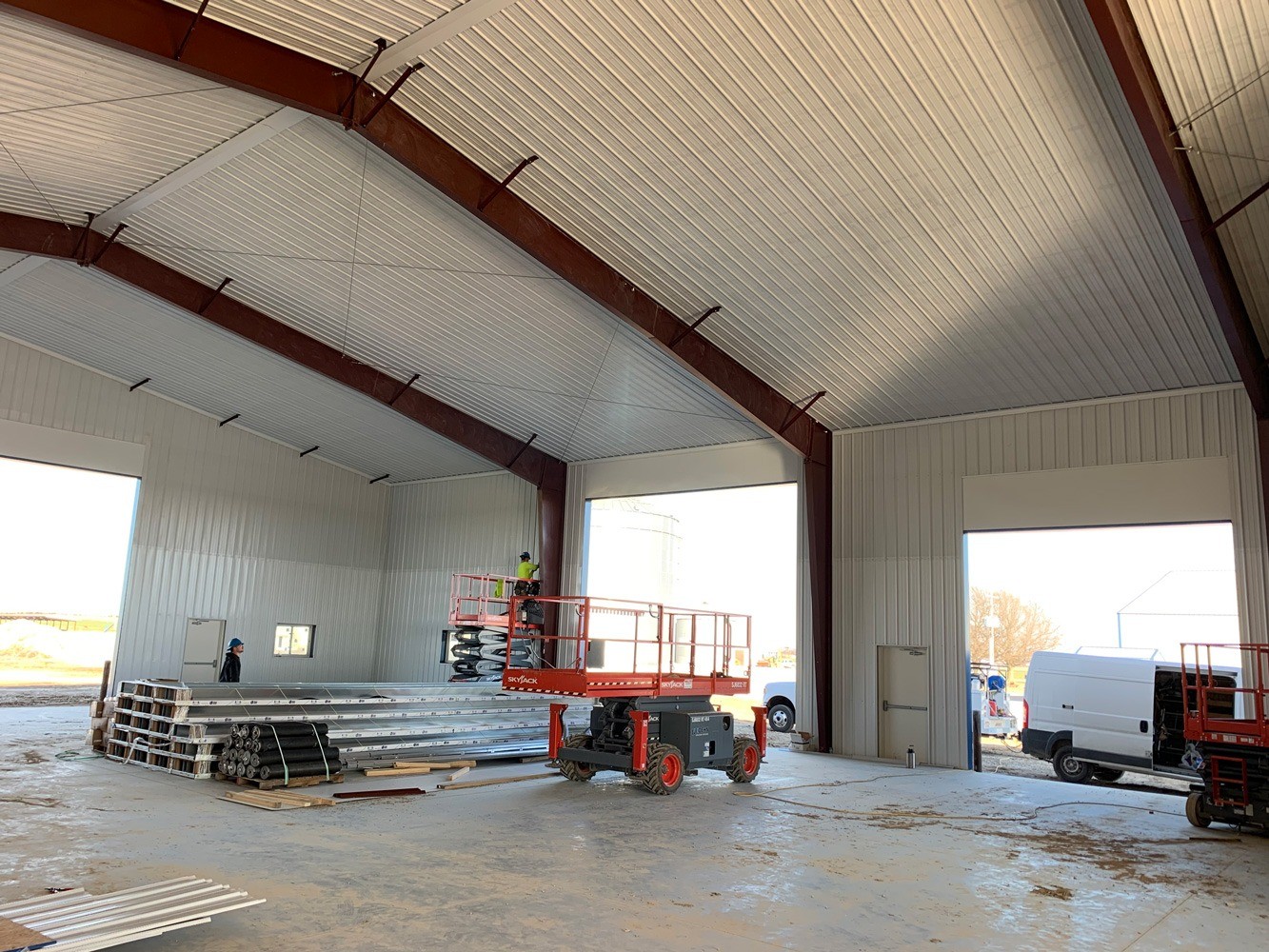

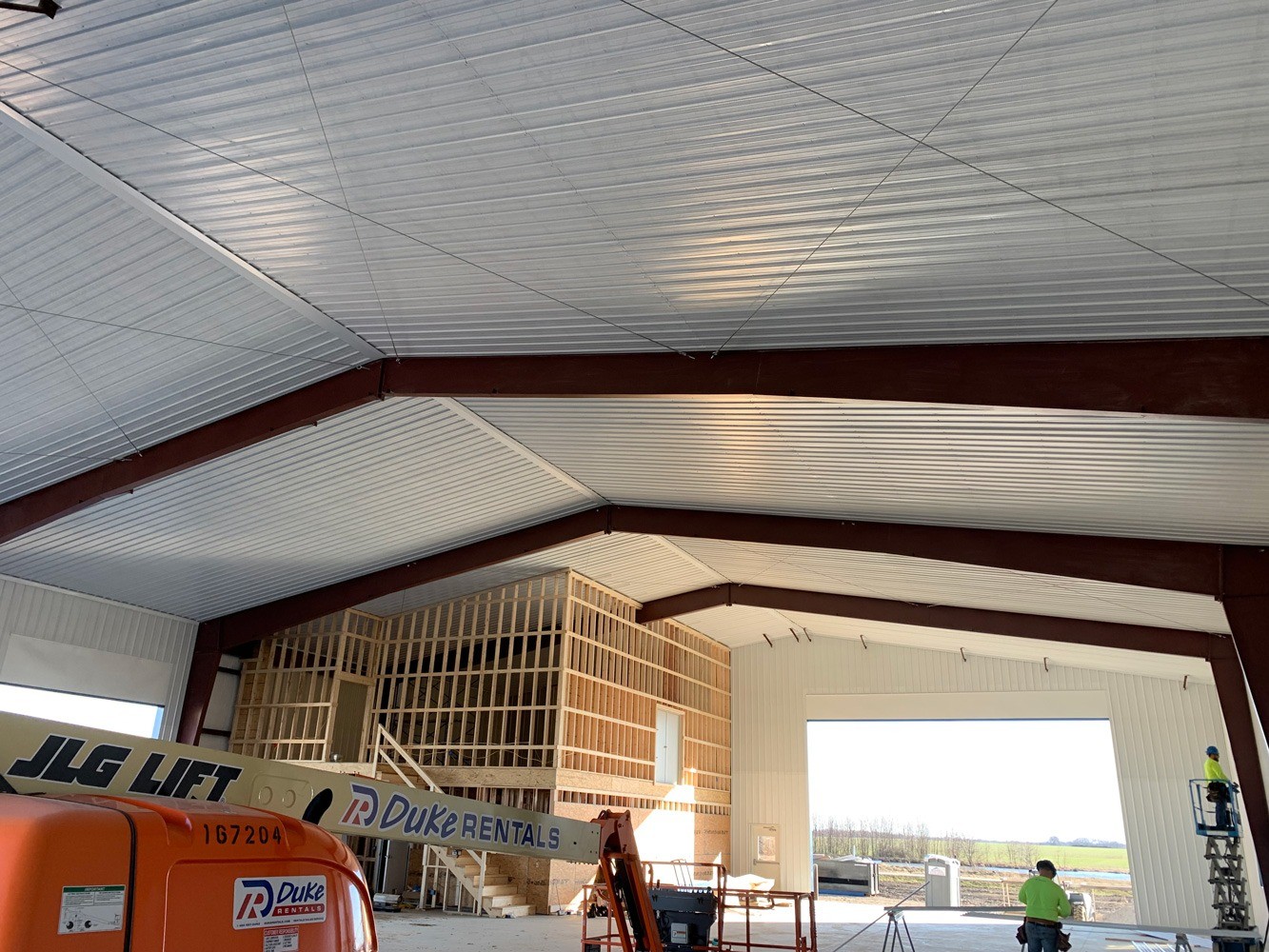

Full-height wall liner panel — the bottom 12' consists of solid panels, with the remainder being perforated. The solid lower panels allow the building to be washed out if needed without moisture getting behind the wall. The use of perforated panels above is intended to help with sound control, as metal buildings with fully solid wall and ceiling panels tend to be extremely loud.
Ceiling liner panel - perforated

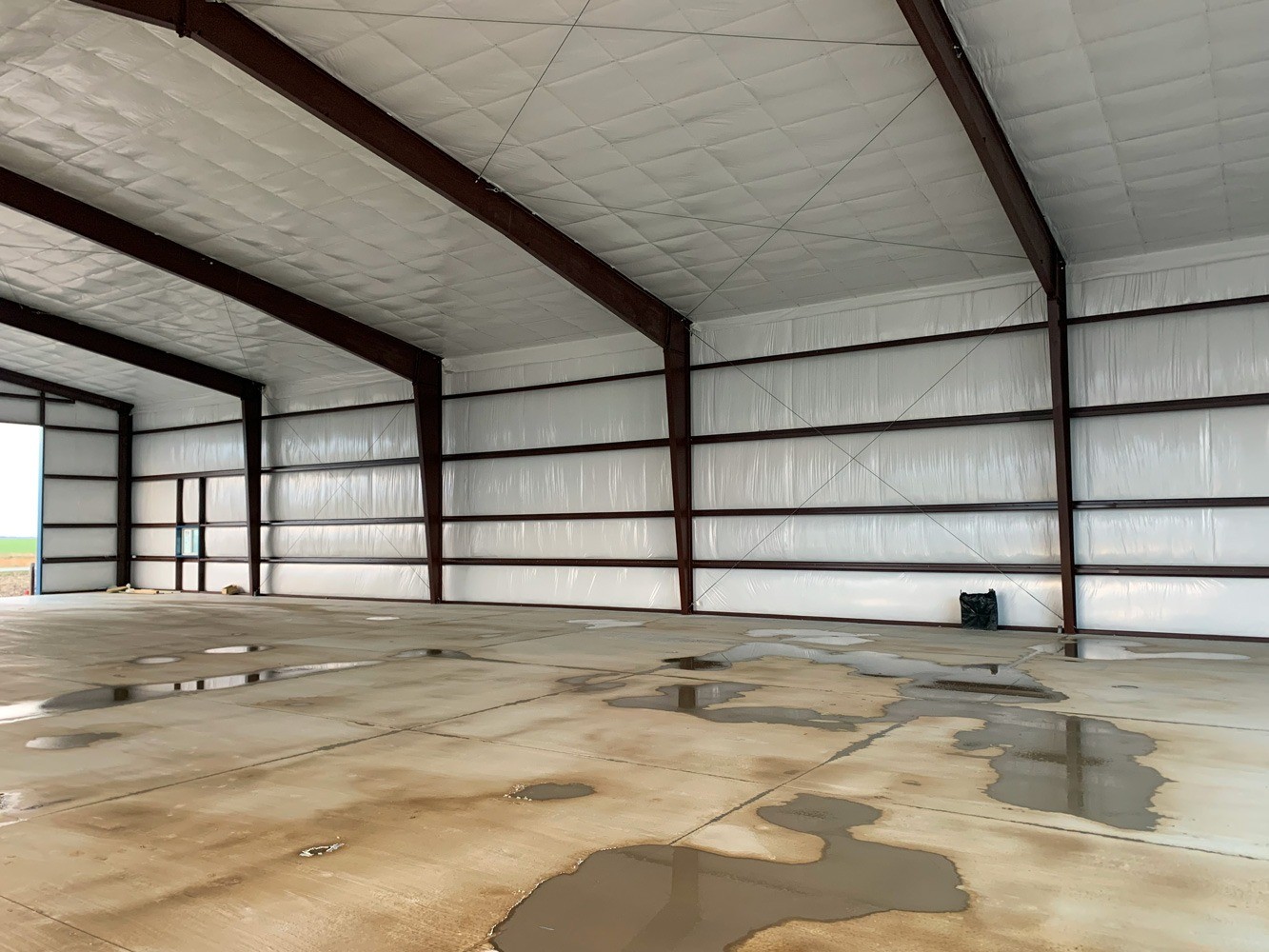

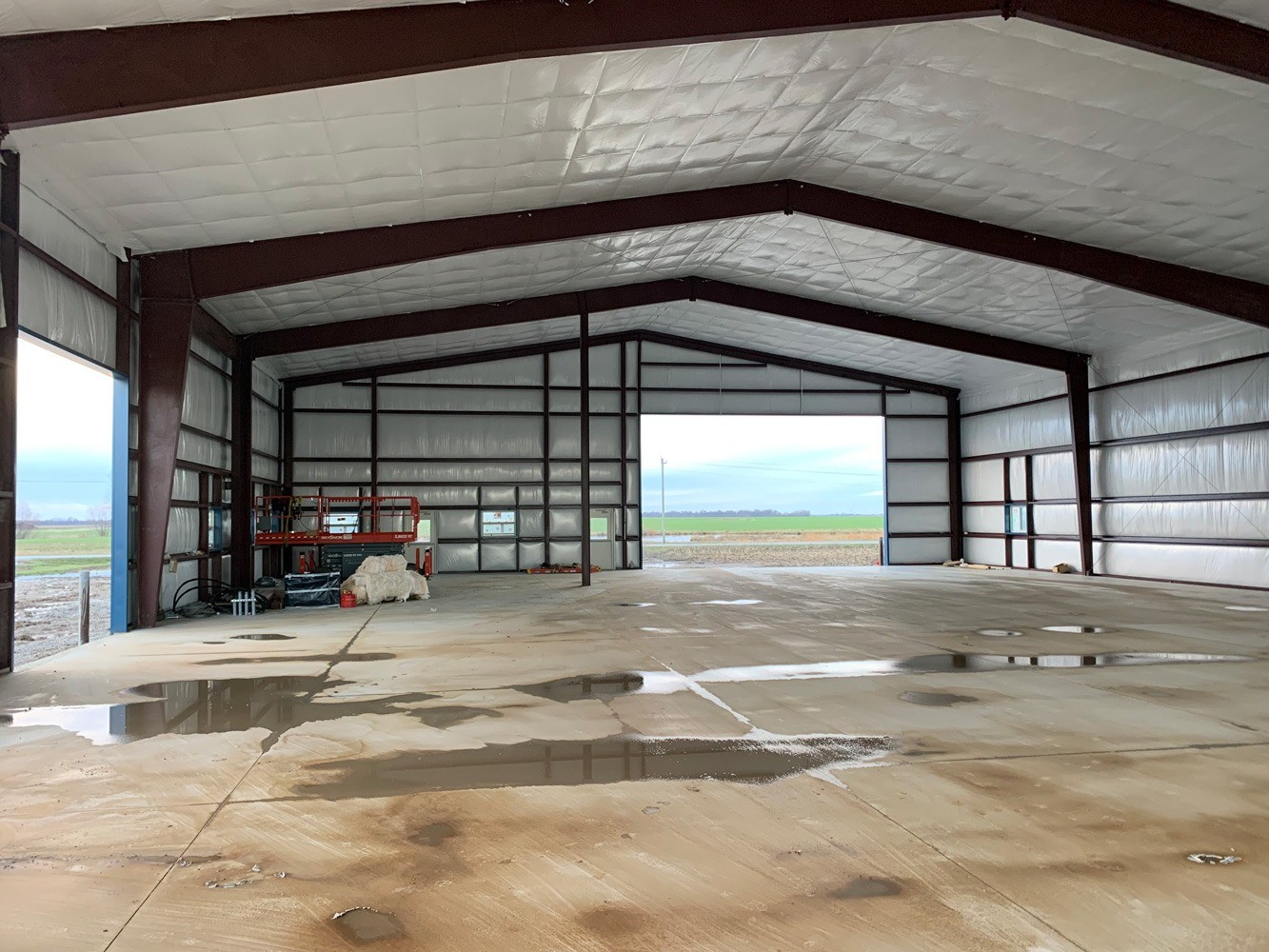

Insulation Package

Wall insulation - 4” (R-13)
Roof insulation - Simple Saver banded R-32 insulation

Concrete

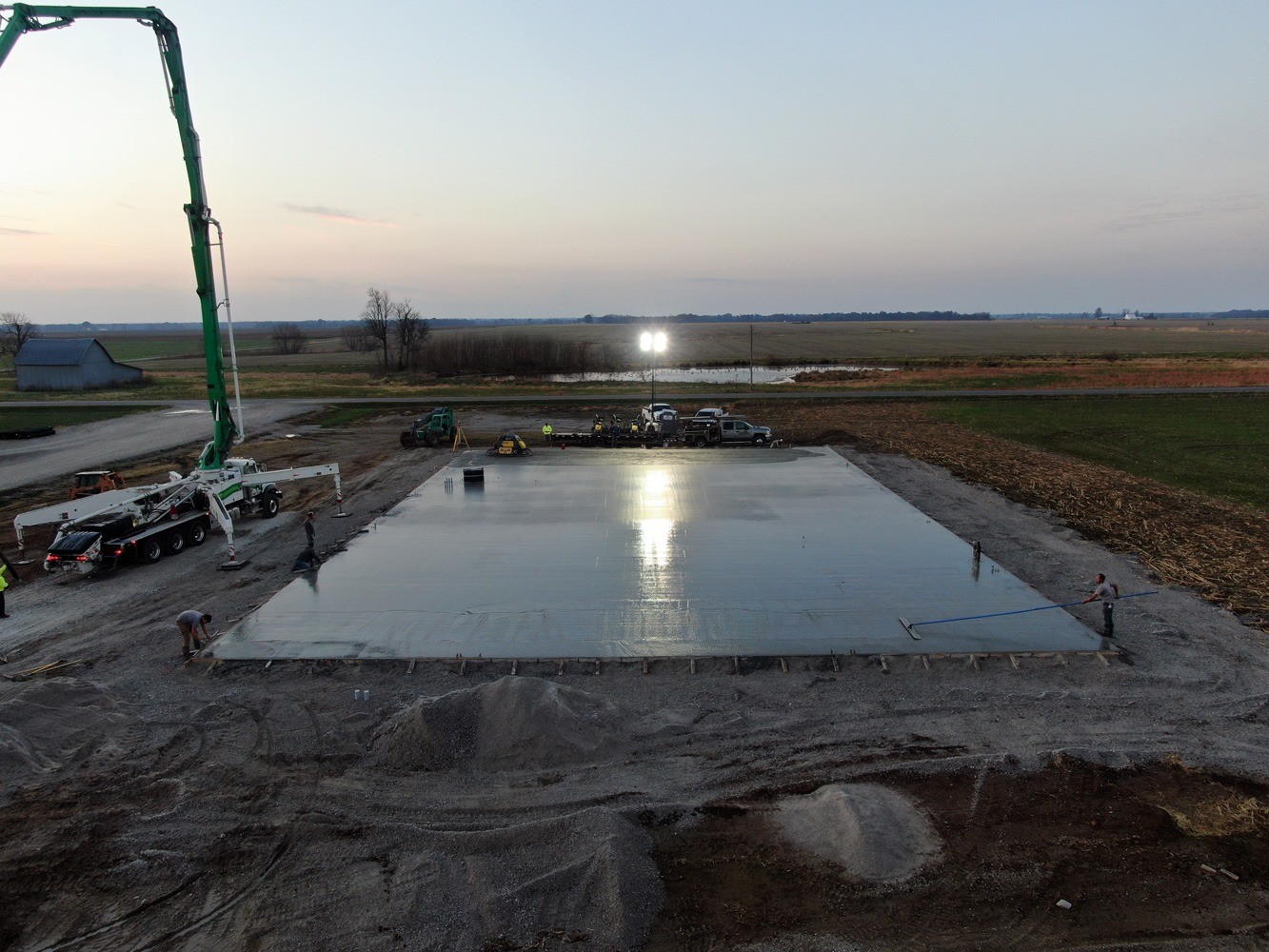

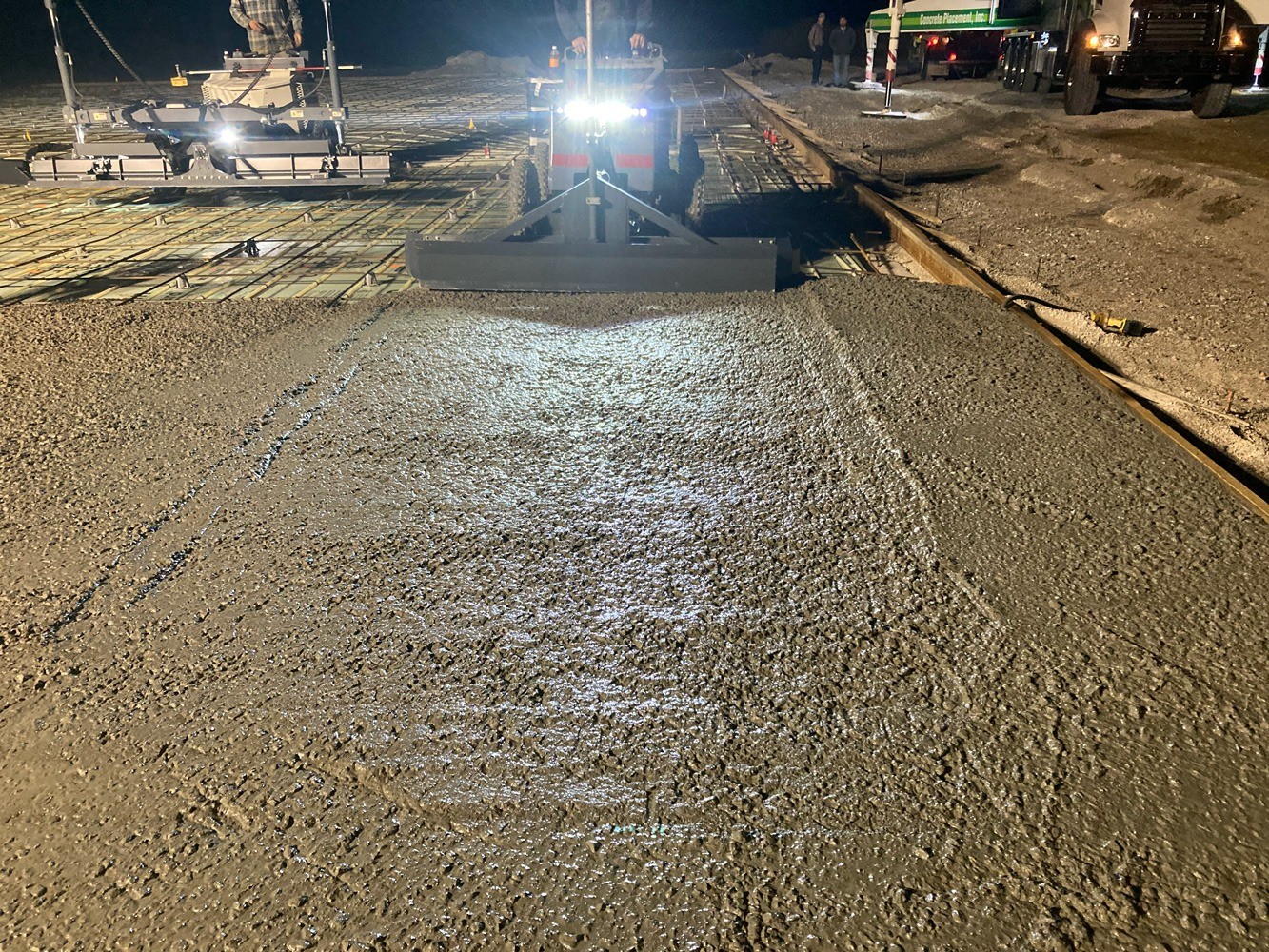

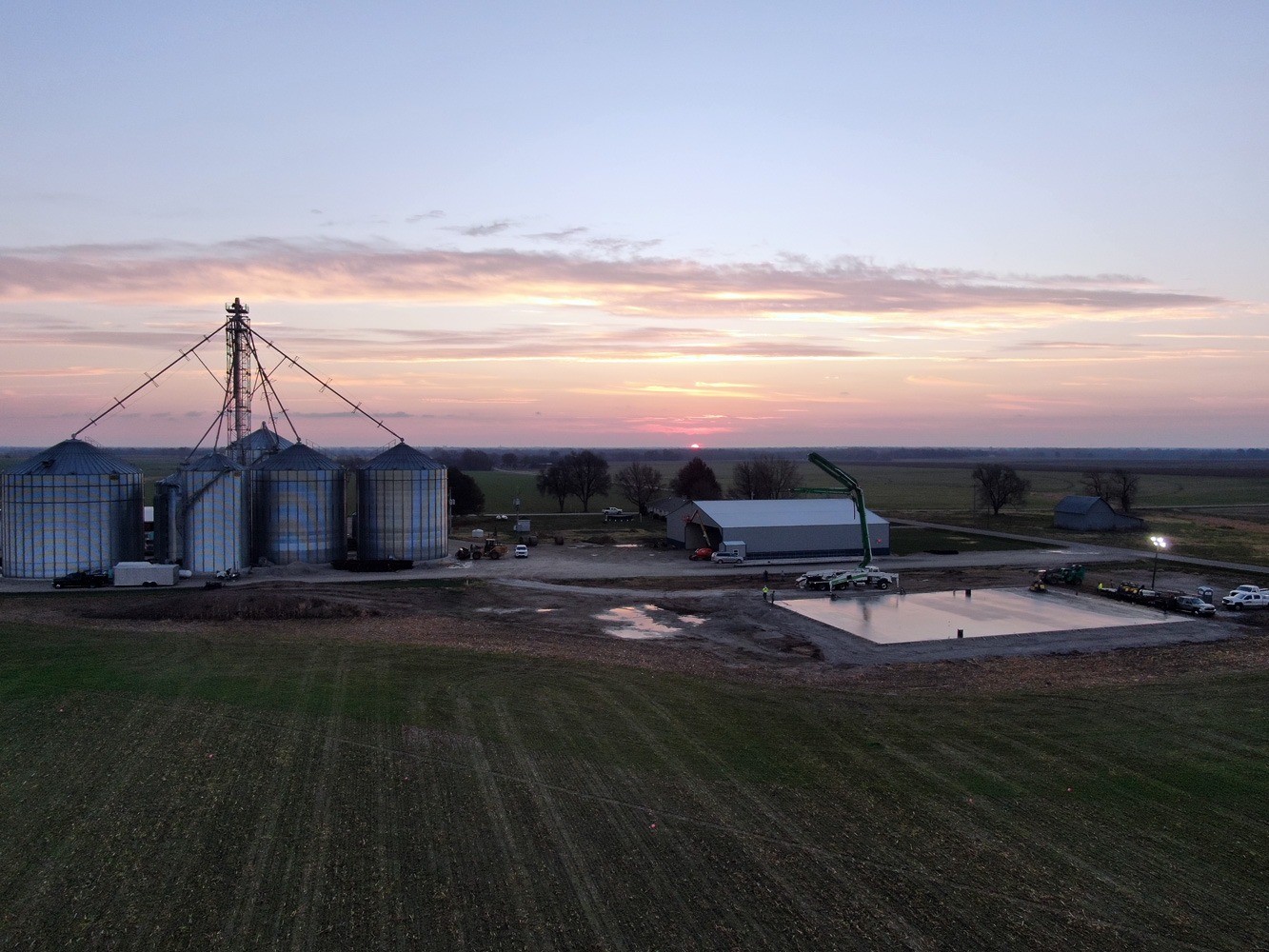

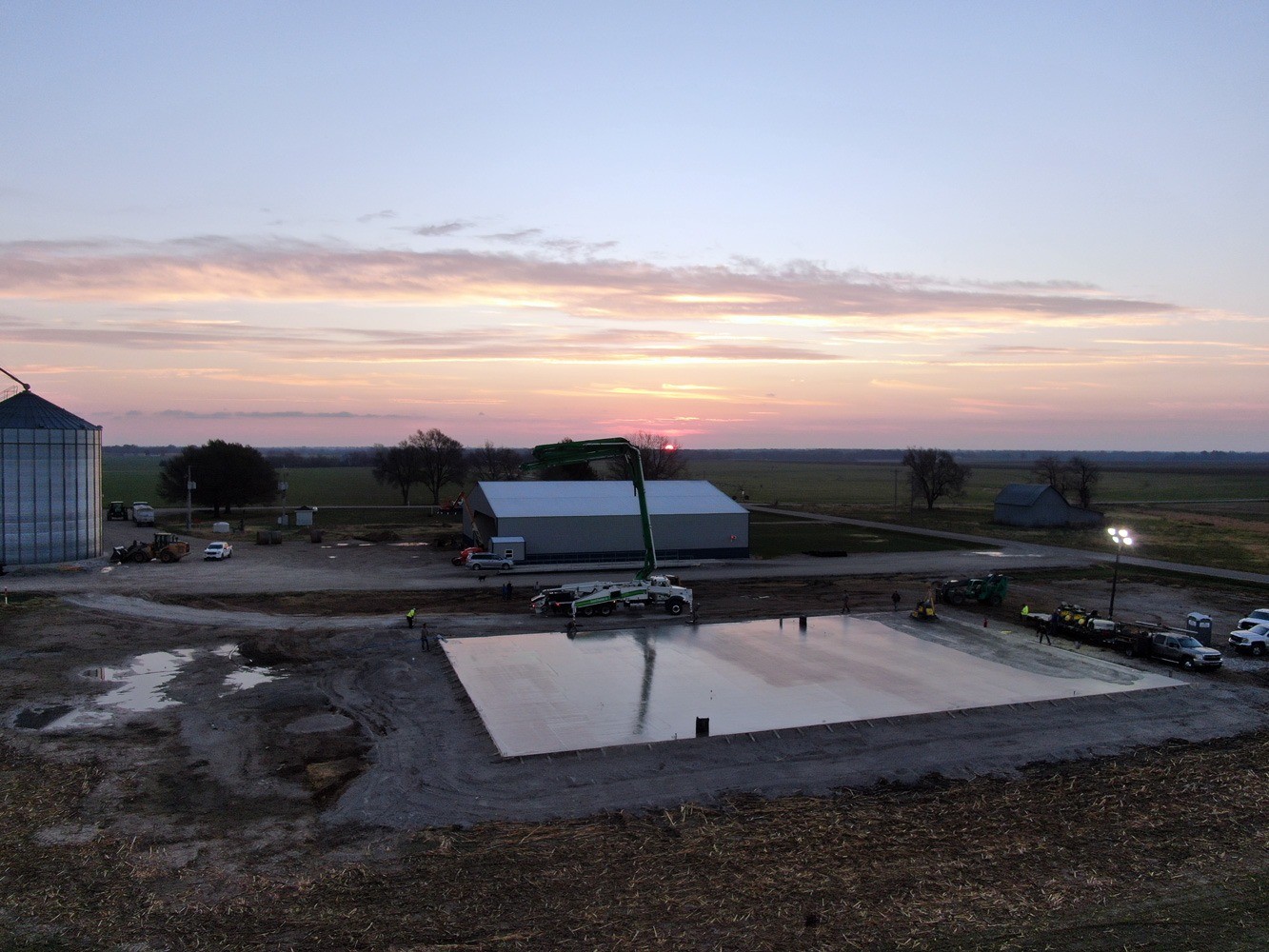

Foundation, piers, and slab

Project Location

Jasper, MO
